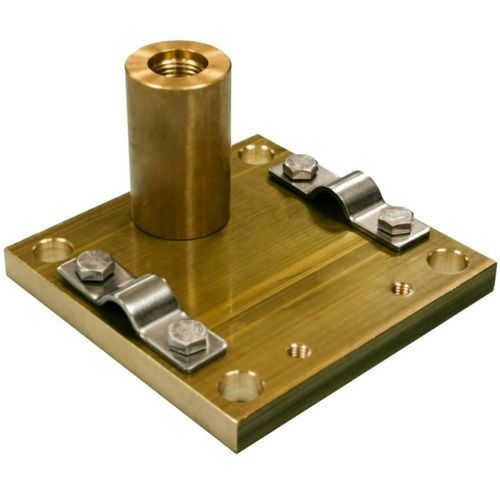

Horizontal support for lightning rods
Support base plate for fastening simples lightning rods to flat surfaces.
Base made of: Cu / Zn Copper alloy, stainless steel and copper. (See other manufacturing materials).
• Its installation is suitable for fastening termination rods up to 2,000 mm in length and 16mm or 20mm Ø, on flat roofs or horizontal surfaces.
• Suitable for external protection of all types of structures, either as single collection system, or as a component of conductive mesh and Faraday cage systems.
Characteristics
• Easy installation.
• No need to install adapter piece or mast anchor.
• The base comes with two connections for round conductor connection (50-70 mm2 cable or Ø8-10 mm bar) or 30x2 mm flat bar.
• The base has several holes for connecting in different directions to facilitate mounting Faraday cage systems.
