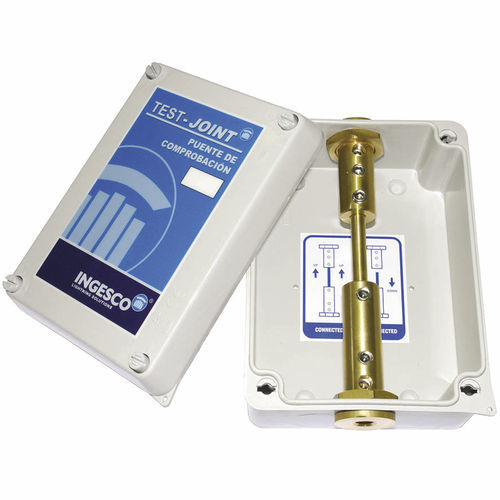

Wall-mounted junction box 250006IP65weatherproofPVC
Add to favorites
Compare this product
Characteristics
- Mounting
- wall-mounted
- Protection level
- weatherproof, IP65
- Material
- PVC
- Applications
- for cables
- Length / diameter
165 mm
(6.5 in)- Width
115 mm
(4.53 in)- Depth
71 cm
(27.95 in)
Description
In-box test joint for wall mounting ground systems.
Junction box suitable for grounding systems where no pit installation can be performed at ground level, or it is required to have a isolator switch on the wall.
Characteristics
• Manual release system.
• Valid for connecting round conductors (rod or cable) to 50 mm². Available adapters for 70 and 95 mm² cable section, or adapters for flat conductors (tape) of 30x2-4 mm.
• Weatherproof (IP65) PVC box).
• Mang Coupling sleeves made of Cu / Zn alloy, with stainless steel screws.
• Easy handling and installation.
• Secure connection.
