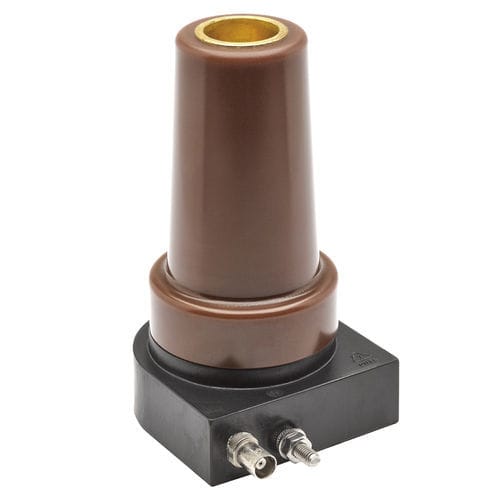

Voltage sensor INGEPAC™ SR GR

INGEPAC™ SR GR are voltage sensors based on resistive dividers for gas-insulated applications up to 20 kV. The sensor’s transformation ratio is 20000/√3 : 2/√3 and complies with the requirements defined in IEC 61869-1:2007, IEC 61869-3:2011 and IEC 60044-7:2000 standards. •Accuracy in module: ±1% for the defined temperature range •Accuracy in angle: ±1 º for the defined temperature range •Insertion: type C symmetrical T connector •Transformation ratio: 10,000:1 •Protection level in primary area: IP65 •Primary area material: resin
