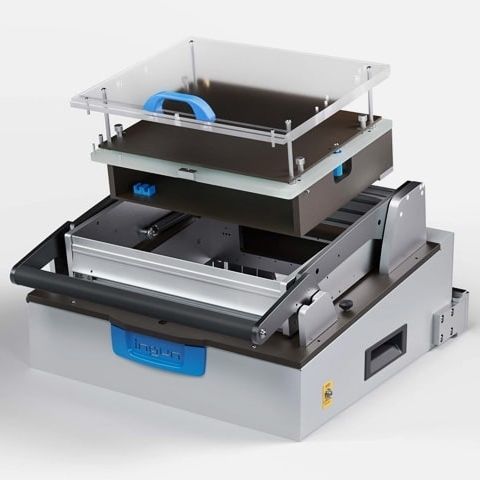

Test fixture MA 21xx series

Test fixtures in the MA 21xx series are suitable for contacting electronic modules with medium quantities and a high number of versions. The test fixtures are designed as an interchangeable kit system, are connected to an existing test system, and are operated with interchangeable kits that are specially designed for the electronics assembly to be tested. They boast the following features: •Interchangeable kit system •High contact force of up to 2,000 N •Energy-saving, shock-absorbing opening mechanism •Modularly configurable internal interface •Exchangeable kits can be used without readjustment •Available with and without test system interface •Pressure frame unit and probe plate can be screwed together, to form a unit with protected probe field (for storage/transport) •Service life: 500,000 load cycles (under laboratory conditions)
