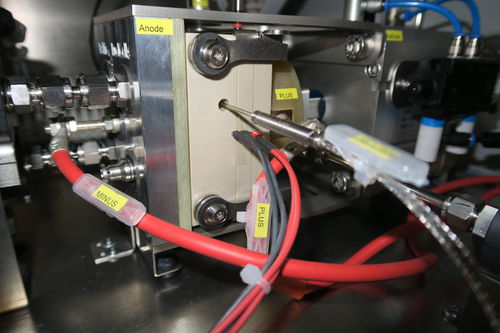

Fuel cell test bench

compressiontemperaturestability

Our customized fuel cell test systems are the optimal solutions for fundamental research and applied research. Whether university, research institute or company, you will benefit from our long lasting experience in development and use of PolymerElectrolyteMembrane Fuel Cells (PEM-FC). Together with you we will analyze your needs and based on our basic systems and our manifold accessories we provide you a tailor made solution. inhouse CellTest inhouse StackTest Our systems are developed for PEM singe cell or PEM stack testing application and they are suitable for: LT-PEM (Low temperature PEM 30 – 80 °C) MT-EPM (Medium temperature PEM 30 – 120 °C) HT-EPM (High temperature PEM 120 – 180 °C) A combination of several or all temperature applications within one test system is possible. The multi-level safety concept and the decentralized control system facilitate a safe and fully automated operation (24/7). inhouse CellTest is the ideal tool to perform baseline investigations with single cells, using the Baltic quickconnect system. It is suitable for: MEA characterization (performance, stability, robustness) Operating parameter screening including compression pressure Degradation rate characterization Component development (catalyst, membrane etc.) MEA material testing etc.
