Planetary gearbox IGC-T9coaxialhollow-shaft200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft
- Torque
- 200 - 500 Nm
- Configuration
- compact
- Performance
- precision
- Applications
- drive, wheel, drill
- Rotational speed
4,000 rpm
(25,132.74 rad.min-1)- Gear ratio
20.4 unit, 25.6 unit, 29.6 unit, 35.6 unit, 45.1 unit
- Weight
49 kg
(108.03 lb)
Description

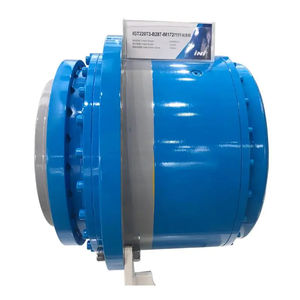

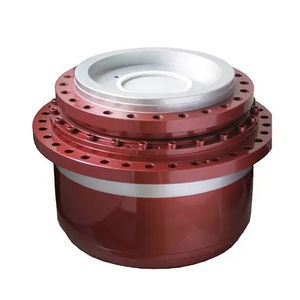

Planetary Gearbox IGC-T9 features high total efficiency, compact and module design, great reliability and durability. Advanced design experience and modern fabrication processes warrant outstanding load carrying capacity and operational safety.
Planetary Gearbox - IGC-T Hydrostatic Drive Series are widely applied in crawler rotary drill rigs, wheel and crawler cranes, track and cutter head drives of milling machine, road headers, road rollers, track vehicles, aerial platforms, self-propel drill rigs and marine cranes. The drives not only widely have been used by domestic Chinese customers such as SANY, XCMG, ZOOMLION, but also have been exported to Southeast Asia, Middle East, India, South Korea, the Netherlands, Germany and Russia and so on.
Mechanical Configuration:
IGC-T9 hydrostatic drive consists of planetary gearbox and wet type multi-disc brake. Customized modifications for your devises are available at any moment.
