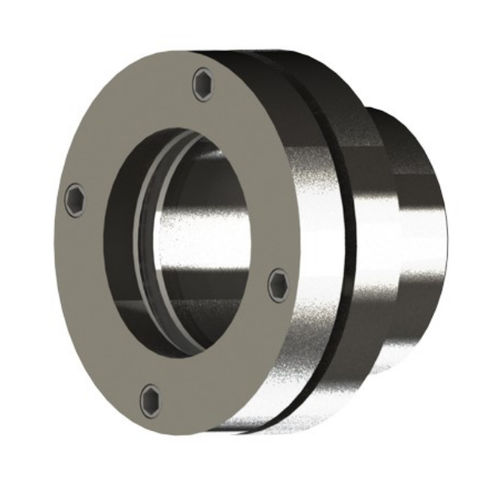

Vessel sight glass level indicatorsanitarystainless steel
Add to favorites
Compare this product
Characteristics
- Specifications
- for vessels, level indicator, sanitary, stainless steel, carbon steel, weld-on
- DN
Max.: 9 in
Min.: 3 in
- Operating temperature
Max.: 1,450 °C
(2,642 °F)Min.: -45 °C
(-49 °F)- Operating pressure
Max.: 600 psi
Min.: 0 psi
Description
The sight glass windows weldable to tank allow a total vision of the interior of a process. Depending on the fluid temperature and pressure to work, a recommendation can be made on the best manufacturing material, type of glass and type of packaging.
Materials in which the bodies can be manufactured - Carbon steel with anticorrosion coating, stainless steel (304 or 316)
Materials in which the gaskets can be manufactured - Buna, Neoprene, Teflen, Sanitary Rubber, EPDM, Viton
Materials in which the glass can be manufactured - Tempered Borosilicate, Tempered Soda Lime, Quartz, Policarbonate, F-silicate
Type of connection - Welding
Type of vision - Full View
