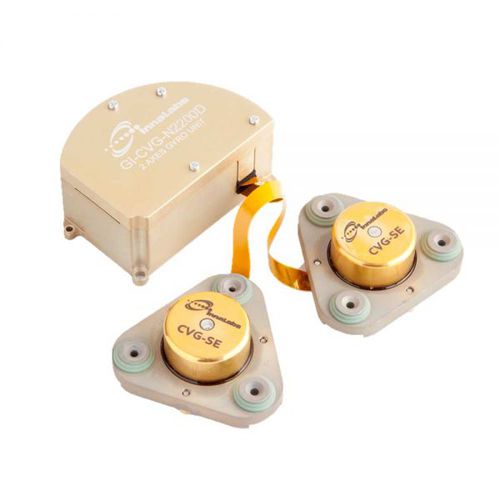

Digital gyroscope GI-CVG-N2200D

Coriolisbiaxialfor aeronautics

Ideal for Flight Control The GI-CVG-N2200D is built with Coriolis technology to deliver true tactical grade performance in a small lightweight package. With an improved Angular Random Walk and an excellent short-term bias stability, the GI-CVG-N2200D is a perfect fit to for Flight Control. Key Performance Features •Small packaging •Digital interface •Outstanding Short-term Stability •Excellent Angular Random Walk •Very High MTBF •Environmentally rugged •Long Life Specification Parameters Unit Values GI-CVG-N2200D Number of axis Two Output format Digital Output interface Asynchronous RS-422 Output signal rate Hz 7900 Temperature compensation (Bias, SF) Yes Measurement range deg/sec ±160 Bandwidth (-3dB) Hz ≥ 300 In run Bias stability (room temp.) deg/hr ≤0.22 Bias stability, full temperature range, 1σ deg/hr ≤ 10 Bias repeatability, turn-on to turn-on, 1σ deg/hr 1 typical Angular Random Walk (steady conditions) deg/√hr 0.01 typical Quiescent noise (1 – 100 Hz), RMS deg/sec ≤ 0.01 Scale factor error, full temperature range, 1σ ppm ≤ 3500 Scale factor linearity ppm ≤ 1500 Start up time sec 1 sec typical Input signal (MIL STD 461 and 1275) VDC +12 VDC to +36 VDC Power consumption Watt < 3 @15V Operational temperature degC -40 to +85 Storage temperature degC -55 to +90 Vibration, operational 3.63 g rms (DEF STAN 00-35) and 12 g rms, 5Hz-2kHz (Note #1)
