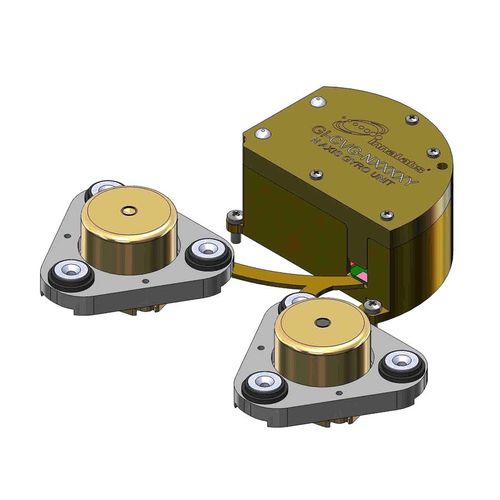

Single-axis gyroscope GI-CVG-N2110D

digitalCoriolisrugged

Ideal for Electro-Optics The GI-CVG- N2110D is built with Coriolis technology to deliver true tactical grade performance in a small, lightweight package. With an improved Angular Random Walk and excellent short-term bias stability, the GI-CVG- N2110D is a perfect fit for Line-of-Sight Stabilisation to Electro-Optical Systems. Key Performance Features •Small packaging •Digital interface •Outstanding Short-term Stability •Excellent Angular Random Walk •Very High MTBF •Environmentally rugged •Long Life Specification Parameters Unit Values GI-CVG-N2110D Number of axis 1 Output format Digital Output interface Asynchronous RS-422 Output signal rate Hz 7900 Temperature compensation (Bias, SF) Yes Measurement range deg/sec ±20 Bandwidth (-3dB) Hz ≥ 25 In run Bias stability (room temp.) deg/hr ≤0.1 (typical 0.05) Bias stability, full temperature range, under ±2C/min, 1σ deg/hr ≤ 10 Bias repeatability, turn-on to turn-on, 1σ deg/hr 1 typical Angular Random Walk (steady conditions) deg/√hr ≤0.005 (typical 0.003) Quiescent noise (1 – 100 Hz), RMS deg/sec ≤ 0.004 Scale factor error, full temperature range, 1σ ppm ≤ 3500 Scale factor linearity ppm ≤ 1500 Start up time sec ≤ 1 Input signal (MIL STD 461 and 1275 [RD2]) VDC +12 VDC to +36 VDC Power consumption Watt < 3 @15V Operational temperature degC -40 to +85 Storage temperature degC -55 to +90 Vibration, operational 3.63 g rms (DEF STAN 00-35) and 12 g rms, 5Hz-2kHz Shock g, ms 800g, 0.6ms half sine
