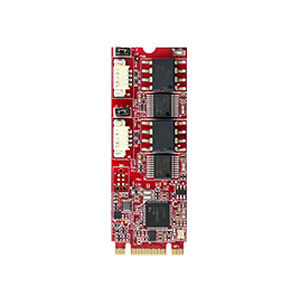

PCIe interface expansion card EGPC-B201

CANbusSAE J1939industrial

Alternative M.2 2260 or 2280 B-M key CANbus 2.0B backward compatible with 2.0A Supports baud rate 100/125/250/500(default)/800/1000K Supports CAN message acceptance filter Keeps configuration after hardware reboot Up to 6000 CAN messages per second (receive data) Supports Listen-only mode Additional driver to support Linux SocketCAN Supports SAE J1939 high layer protocol (Optional) Termination resistor enabled/disabled by jumper Complies with EN61000-4-5 2.5kV surge protection Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV 30μ” golden finger, 3-year warranty Supports -40 to +85 degrees Industrial design, manufactured in Innodisk Taiwan
