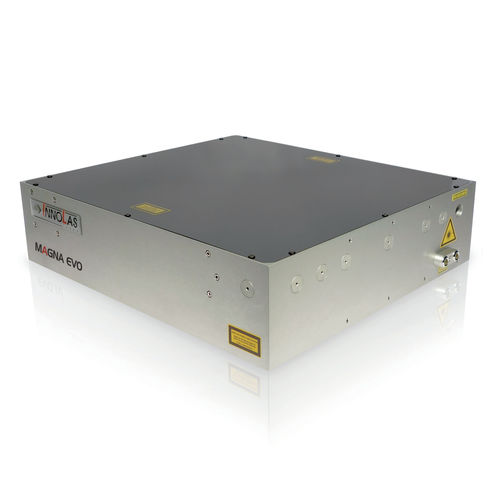

Sub-nanosecond laser MAGNA EVO seriesactively Q-switchedsolid-staterugged
Add to favorites
Compare this product
Characteristics
- Operational mode
- actively Q-switched, sub-nanosecond
- Technology
- solid-state
- Other characteristics
- rugged, high-energy, air-cooled, water-cooled, single longitudinal mode, diode, DPSS, diode-pumped
- Power
2,500 W
- Wavelength
355 nm, 532 nm, 1,064 nm
Description
Based on the patented resonator design of the picolo series and the industry-proof amplifier design of the SpitLight family, the MAGNA platform creates sub-nanosecond pulses with up to 30 W output power, and up to 1kHz pulse frequency. Customized amplifier designs and a broad range of options are available.
• > 25 Watt at 500 ps pulse duration
• Up to 1000 Hz pulse repetition rate
• Fully Diode pumped
• Active Q-switch, < 400 ps Jitter
• Long diode lifetime, low maintenance
• Excellent beam quality and pointing stability
• Robust and stable monolithic design
• Single longitudinal mode available
• 266 nm on request
