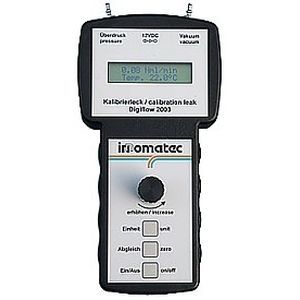

Leak calibrator Digiflow 2003

portable

"Freely" selectable for inspection of leak testing devices and simulation of leaks. Technical data Flow Measurement range: 0 ... 30,0 Nml/min (Typ 2003-30) Flow Measurement range: 0 ... 200,0 Nml/min (Typ 2003-200) Measurement accuracy: < +/- 2% v.E. Response time: 5 ms Measurement accuracy: <+/-0,1°C in the linear area. Response time: 30 ms Testing medium: Dry, oil-free, filtered compressed air Input pressure: max. 10,0 positive pressure or – 1,0 bar vacuum Calibration setting: 998 hpa, 22,0 °C +/- 2°C Measuring value display: Alphanumeric double-lined display Vacuum measurement connection: max. –1,0 bar; Swagelok B-QM2-S-2PM-ZN Voltage supply: 9V Block battery (approx. 60 hours of operation) Network device connections: 12 V ; 8,4 mA Dimensions: 210 mm x 110 mm x 70 mm Weight: 570 g Order no.: 7250 für DIGIFLOW 2003-30 7260 für DIGIFLOW 2003-200 Accessories Storage Case: (Standard) 395 mm x 295 mm x 106 mm Measuring lead: 3 mm Diameter, ca. 1000 mm long, with Swagelok B-QM2-S-2PM-ZN and Swagelok B-QM2-B-2PM-ZN Network device: 12 V ; 8,5 mA Operating instructions and calibration certificate
