Pressure test bench

leakautomatichelium

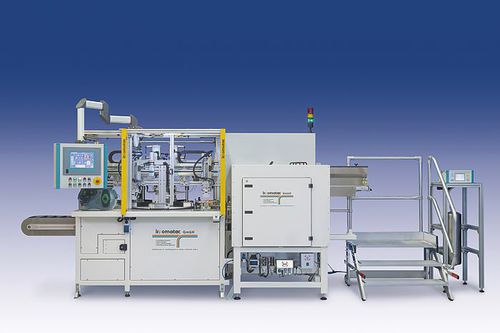

Example I Fully automated eightfold helium leak testing of different pressure switch housings with circular control panel for 8 different versions of test piece. Supply of components via silo and separation of top-selling types using vibration conveyor. Optional loading and channelling of small batches possible. Facility for all stations to be changed quickly so that a type can be changed within 15 minutes. • Fully automated test bench • Automatic test piece adaption • Cycle time 2.1/part • Test pressure 25 against vacuum • Detection limit 1 x 10-6 mbarl/s • Up to 8 pieces accepted product-related helium chambers with sealing tools • innomatec Helimix 100-20 helium/air mixing station • Procedure for setting up for new type possible within 15 minutes • Automatic marking of correct parts by means of infomarker and pointer • Camera system for checking markings on parts present • Automatic ejection of those parts rejected via synchronised conveyor belt • Space-saving layout of vacuum pumps and measuring sensors under test bench on base frame allowing easy servicing • Electrically operated high pressure sealing unit for generating the testing pressure • Label printer for creating barcode labels for the parts' packaging Example II Single helium leak testing of different car exhaust gas heat exchangers with chamber carousel for quick set-up with low system downtime. • Automatic test piece adaption • Up to 4 pieces accepted in product-related helium chambers with sealing tools • Procedure for setting up for new type possible under a few seconds • Automated marking of correct parts
