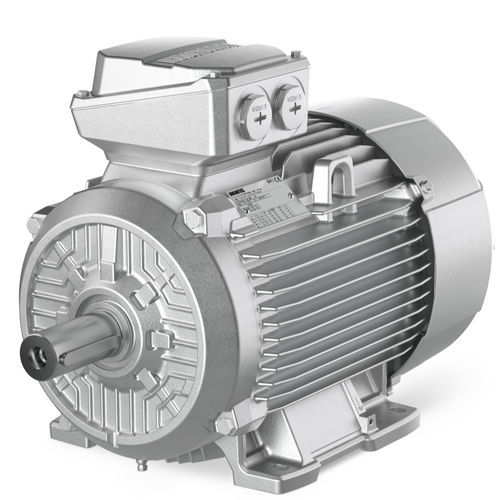

Low-voltage motor VSD10ACasynchronousIP55
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- asynchronous
- Protection class
- IP55, IP65, IP66, IP56
- Configuration
- aluminum
- Efficiency classes
- IE3, IE2, IE4, IE1
- Number of poles
- 4-pole, 2-pole
- Cooling mechanism
- forced air-cooled, self-ventilated
- Applications
- industrial, for pump, for compressors, for fans
- Other characteristics
- low-voltage, variable-speed
- Power
Min.: 2.2 kW
(2.991 hp)Max.: 15 kW
(20.394 hp)- Torque
Min.: 9.6 Nm
(7.0806 ft.lb)Max.: 1,273 Nm
(938.9166 ft.lb)- Rotational speed
1,500 rpm, 1,800 rpm, 2,610 rpm, 3,600 rpm, 5,220 rpm
(9,424.78 rad.min-1, 11,309.73 rad.min-1, 16,399.11 rad.min-1, 22,619.47 rad.min-1, 32,798.23 rad.min-1)
Description
• Converter-optimized asynchronous motor (VSD10)
The investment-optimized system comprising a Innomotics SD VSD10 motor and a converter permits simple selection via a catalog or engineering tool, along with fast commissioning based on a data matrix code for predefined converter parameters. Optimum matching of the motors to operational conditions on the converter results in lower system losses and thus high energy efficiency.
