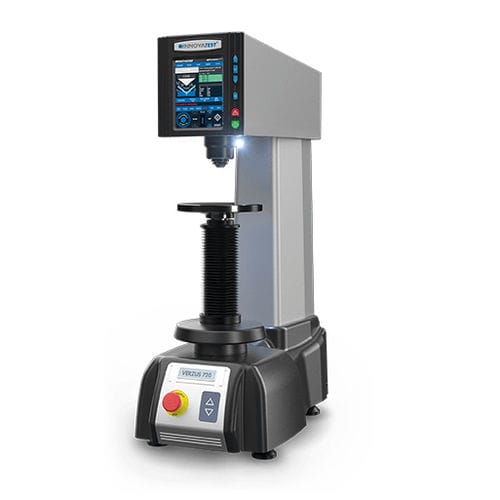

Rockwell hardness tester VERZUS 720RS(B)

Brinellbenchtopautomatic

ROCKWELL/BRINELL HARDNESS TESTER Quality, durability, accuracy The VERZUS 720 RS(B) is constructed around a rock solid C-frame with supreme rigidity. The closed loop system based on a load cell and precision force actuator guarantees the best GR & R results. The test forces can range from 1kgf to 250kgf and a full test cycle can be as little as 13 seconds (at a dwell time of 10 seconds). Due to the depth measurement via an optical system a direct depth reading of 0.1 micron is a standard feature. For demanding users the VERZUS can be equipped with a motorized spindle (optional) that lifts your work piece, without any effort, to the required testing position. Highlights Scales: Rockwell, Superficial Rockwell, Brinell (RSB model), HBT & HVT, Ball indentation for plastic ISO 2039/1 Test Forces: 3, 10 kgf pre-load; 15, 30, 45, 60, 100, 150kgf main load. All Brinell test forces from 1kgf – 250kgf (RSB model). Load App. System: Fully automatic, Load cell, closed loop, force feedback Control:Fully integrated Windows Controller, SSD hard disk, Windows 10 operated, IMPRESSIONS™ advanced workflow software, includes automatic measurement, keyboard & mouse Display: 6.5’’ Industrial HD touchscreen, embedded Software: CSV files, single readings, reports, printer
