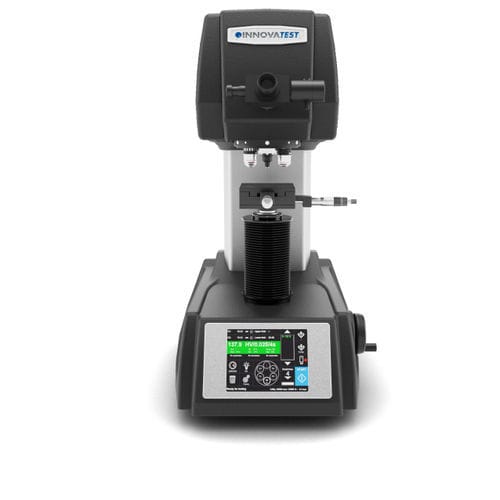

Vickers hardness tester FALCON 300G2

micro Vickersbenchtopworkpiece

The FALCON 300G2 improves on the conventional hardness testing methods by focusing on elimination of user influence on the test results. The advanced force sensor technology utilizes an electronically controlled loadcell closed loop system with force feedback to achieve absolute accuracy, reliability and repeatability, on all of the forces used for a testing. The innovative software functions of integrated I-TOUCH™ workflow control, allows file storage, test program setting and storing, limit settings, conversions to other hardness scales, system setup and convex and concave sample test settings that contribute to the exceptional repeatability and reproducibility of test results. The robust I-TOUCH™ workflow control unit provides intuitive software giving easy control over the hardness testers functions. HIGHLIGHTS Scales: Micro Vickers, Vickers, Knoop Test Forces: 5gf – 2kgf (multi load cell, closed loop) Eyepiece: Analogue or electronic digital eyepiece – view via eyepiece and camera simultaneously Objectives: 5X, 10X, 20X, 50X, 100X 6 Position Turret: 2 indenters, 4 objectives Illumination: Power LED Control: I-TOUCH™ powerful tester and function control Z-Axis: Manually operated, fine adjustable on the side XY-Stage: Manual, 100mm X 100mm, travel 25mm X 25mm Workpiece Acc.: 150mm (H) X 170mm (D) Output: USB
