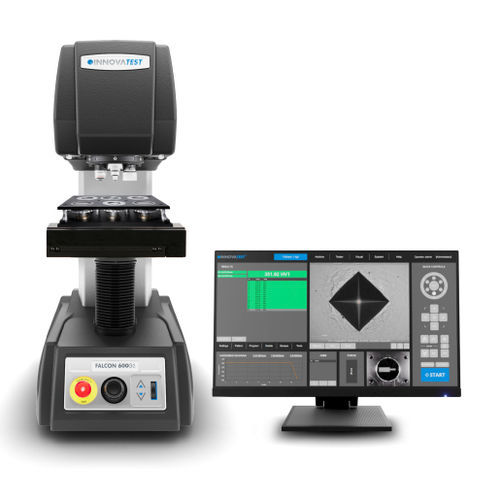

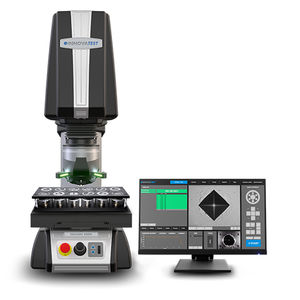

Brinell hardness tester FALCON 600G2

Vickersmicro Vickersbenchtop

The FALCON 600G2 Automated Hardness Testing System provides a fully integrated platform for your complete Vickers, Knoop & Low Force Brinell hardness testing needs. Coming from a leading edge of mechanical design, with a range of CNC stages and best in class optics, 18 Megapixels, 4K, full color image technology, to a fully featured, easy to use, User Interface. A standard force range of 1gf to 62.5kgf, optional going down to forces as low as 0.1gf, to be used in combination with any thinkable software application, provides a micro hardness testing machine for today, tomorrow and better… for the future. HIGHLIGHTS Scales: Micro Vickers, Vickers, Knoop, Brinell Test Forces: 0.1gf – 62.5kgf (multi load cell, closed loop) Camera: 18 Megapixel, 4K, full color integrated camera system Objectives: 2.5X, 5X, 10X, 20X, 50X, 100X 6 Position Turret: 2 indenter positions, 4 objective positions Illumination: White TTL power LED, Dual bank power LED stage illumination Control: IMPRESSIONS™ V4, work flow system & tester control Z-Axis: CNC motorized, ball bearing slide, with fast up down and digital scroll wheel for fine adjustment XY-Stage: Manual or motorized Workpiece Acc.: 185mm (H) X 170mm (D) Output: USB, LAN, Bluetooth Software: Large choice of software options, features, plug ins and add-ons, Q-DAS certified
