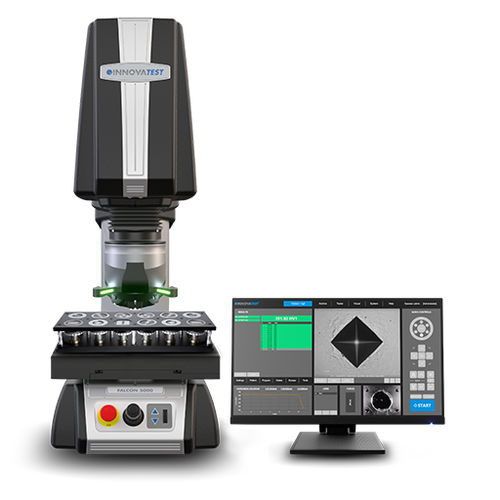

Brinell hardness tester FALCON 5000G2

micro VickersKnoop/Vickersbenchtop

The second generation of the FALCON 5000, the G2, Micro Vickers / Vickers / Knoop and Brinell hardness tester provides exceptional performance, designed to match the most demanding user tasks. The FALCON 5000G2 contains a revolutionary force application range and renewed optical system. The all new 9 position tool changer (turret) is the home to a wide range of indenters, indenter actuators with load cells, objectives, a cross-laser positioning system and load cell supported touch probe. It also provides a base to the 18 megapixel full color measurement camera and 18 megapixel full color overview camera with variable field of view, motorized zoom and auto focus system. Scales: Micro Vickers, Vickers, Knoop, Brinell Test Forces: 10gf – 750kgf (multi load cell, closed loop) Camera: 18 megapixel full color measurement camera, bright white LED TTL illumination Overview Camera: 18 megapixel full color sample image & stage overview camera Objectives: 2.5X, 5X, 10X, 20X, 40X, 60X, 100X 9 Position Turret: 9 position tool changer (turret) with visual LED process indicators Illumination: Power LED Control: Fully integrated i7 Controller, Windows 10 operated, 27” industrial touchscreen, IMPRESSIONS™ 4 advanced workflow software, includes automatic measurement, stage control & pattern configurator, keyboard & mouse Z-Axis: Descending test head, with collision detection, CNC motorized, ball bearing slide, with fast up down and digital scroll wheel for fine adjustment XY-Stage: Manual, motorized stages or/and anvils or work tables at choice Joystick: X-Y-Z control over integrated joystick
