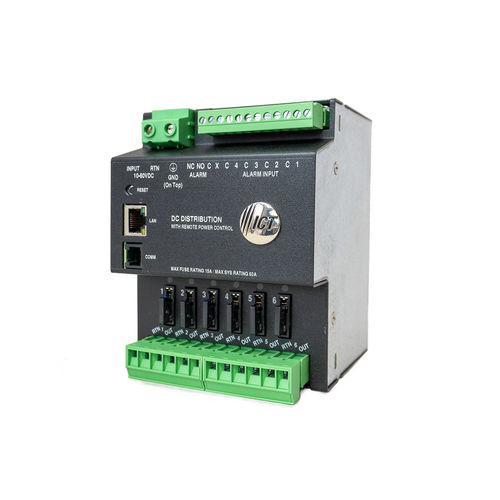

Rack-mount power distribution unit ICT-DIN-PDU6

DCDIN rail

The DIN Series Power Distribution Unit from ICT is a DIN-rail mount, single-bus DC distribution module designed to be used in 12-, 24- or 48-volt DC applications. It includes a secure, easy-to-use web-browser interface, which provides remote power monitoring, power control, and alarm reporting over an Ethernet link, along with SNMP support for integration into your network management system. Combined with the ICT DIN 360-watt power supply, remote monitoring and control of battery current and voltage, low voltage disconnect setpoints, and battery charge current settings are available through the ethernet controller and user interface. The ICT DIN Series is designed, manufactured and supported in North America to meet the need for wireless communications, broadband and other demanding DC power applications. Features Supports +12, +24, and +/-48 volts DC applications 60-amp continuous system current Six fused output positions rated up to 12 amps Supports GMT fuses rated to 15 amps max. Front-mounted fuses with LED indicators when fuse is blown TCP/IP Ethernet communications provides full remote monitoring and control capabilities Network security protocols include HTTPS, TLS 1.2, SNMP v1/v2c/v3 (see data sheet for details) Reporting of total system current, individual load current, system voltage, fuse status Alarm reporting via text or email notification Remote individual output power toggling Automatic load shedding disconnects non-critical loads when on battery power (user defined) Network watchdog automatically reboots routers or switches when no response is received Four digital site monitoring input contacts Up to 30 days of data logging Form C alarm contacts
