4-axis machining center Ino CALIFORNIA

verticalbridgefor aluminum

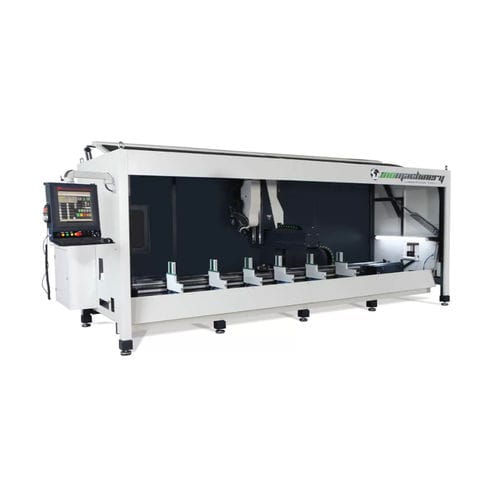

The Compact Design CNC profile machining center with 4 controlled axes X-Y-Z-A. The machine is mainly designed for processing on aluminum profiles. Apart from aluminum, it can also process any kind of light alloy profile with the help of dedicated customized cutters. The bridge that is carrying the high-speed electrospindle is moving on linear guides by the brushless servo motors independently from the drive and processes any kind of shape on the profiles. The electrospindle can rotate from 0 to 180 degrees independent from the drive and machine in any angular position and change the tools from the tool changing magazine with 7 positions. The CADCAM software is a customized tool for “ino machinery” profile machining centers. The pneumatic reference point tilts up and down automatically according to the machine’s working cycle. There are 6 pieces of profile clamping units, that are positioned manually by the operator according to the places that the CadCAM decides. Thanks to the automatic positioning of the clamps option, the bridge can also position the clamps themselves. The cabin enclosure covers move automatically up and down when the machine is in the process and stops processing. The machine works with customized software for processing profiles. Thanks to the Profile Processing Software, Dxf drawings of the profiles to be processed are imported by the operator and displayed in 3D on the screen. The length of the profile is entered, each hole or slot or free shape is recorded as a macro, then these macros are introduced as the operations to be performed on the profile. These macros are selected and placed on the profile.
