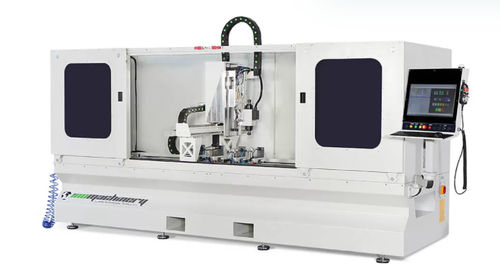

3-axis profile machining center Ino Boxter (XC 1000)

with swiveling spindleCAD/CAMfor windows and doors

CNC profile machining center with economical design cabin moving on X-Y-Z axes. It works on profiles with a high-speed spindle moving on a steel body equipped with a CNC controller unit and servo motors. The reference point at the beginning and end of the machine is lifted manually and determines the zero point of the profiles. Profile clamping pneumatic vices are placed on linear guides in 4 units as standard equipment. It works with Uni_Link, customized software for door&window manufacturing, and the clamp positions are displayed on Uni_Link’s own interface. Thanks to the Uni_Link program, Dxf drawings of door and window profiles are exported to the machine HMI. The size of the door profile to be processed is entered, hinge type, lock type is selected, and the machine performs parametric calculations on the profile perfectly. The machine cover is closed manually by the operator while the profiles are processed and opened manually when the operation is finished. t works with customized software for Door & Window manufacturing, and all information about clamp positions, profile orientation, and profile data are displayed to the operator on its own interface. Thanks to Profile Processing Software, Dxf drawings of door and window profiles are imported by the software, the size of the door profile to be processed is entered, then hinge type and lock type is selected as macros. The processing program is output and listed in the program interface. As the profile lengths change, the profile processing software places the same operations parametrically on different lengths and prepares the processing program file by making all calculations independently.
