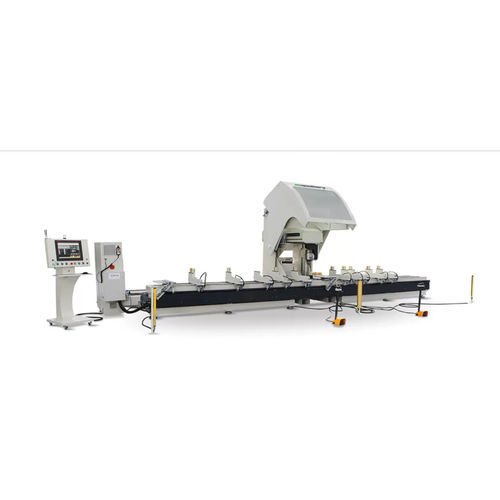

5-axis CNC machining center Ino XP 9000

verticalfor aluminumHSK F63

ino XP 9000 is a real 5 axis CNC Profile Machining Center working on X-Y-Z-A-C axis independently. Thanks to the CNC controller unit it is possible to make any routing, drilling, milling, notching and cutting operations on the profile pieces in any angle and any position. The machine has a standard size of 7.5 meters and optionally 9.5 meters and 11.2 meters. The pneumatic profile holding clamps are moved by the C column itself and positioned according to the placed that are read from the Profile Machining Software to prevent from collision and for the best grip of the profile piece. The machine has a tool changer magazine of 10 positions and 1 for the notching and cutting blade. The blades that can be attached on the machine varies from 120 mm to 500 mm max. Thanks to the 500 mm notching blade it is possible to end mill or notch or cut any size of profile. It is also possible to make the routing operations and the cutting operations in different angles on this machine. Especially with the help of the “Profile MAchining Software” it is possible to list all the cutting and machining operations on the machine and carry them out on this machine without the need for another cutting machine. The maximum profile processing sizes in 3 axis is 500X350 mm and in 5 axis 350 mm X 350 mm. There are 2 working zones on the machine for efficient use that can be extended to 4 different zones optionally. Thanks to the Profile Processing Software, dxf drawings of the profiles to be processed are imported by the operator and displayed in 3D on the screen.
