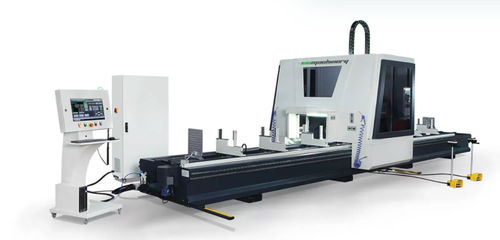

4-axis CNC machining center Ino XP 8000

with swiveling spindlebridgegantry type

ino XP 8000 is a Gantry type 4 axis CNC machining center for processing profiles. The Maxi-Steel type of extra strengthened machine body has a huge rigidity and flexibility in processing profiles of 350 mm X 350 mm in 0,1 mm / 1-meter precision and 80 mt./min X-Axis speed. With the heavy body and the gantry type of machining bridge, it is possible to process the heaviest aluminium profiles, even hardened steel and stainless steel profiles. The clamping units are moved automatically by the column, and the data is collected from the 3D CADCAM profile machining software that generates G codes from the profile drawings. All profile data can be imported from dxf and dwg files very easily through the software. The machining operations can be programmed by using the ready macros for drilling and milling. The machine has a 7.5 kW 24.000 rpm spindle with adjustable speed for different thicknesses of materials The high-speed spindle can rotate in A-axis between 0 to 180 in all intermediate degrees. Brushless servo motors and servo drivers control all the axes through a CNC controller. The real CNC controller is collecting the processing data of G codes from the 3D CAD-CAM profile machining software, and all the moves of the axes are adjusted very smoothly and controlled perfectly The automatic tool changer magazine is placed inside the machine cover right next to the spindle. The tool changer is moving with the spindle not to lose time during the tool changes. Inside the tool changer magazine, it is possible to place many tools up to 300 mm of disc cutter diameter and 200 mm length of cutter bits. This giant tooling helps the operator to solve many machining problems very easily
