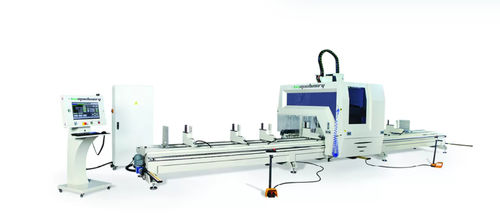

3-axis CNC machining center Ino XP 7000

verticalbridgefor aluminum

The ino XP 7000 is a 3 Axis CNC Profile Machining center designed for processing profiles with high precision and speed. The machine is basically designed for machining light alloy profiles such as aluminium (up to 20 mm wall thickness), pvc, copper, steel up to 20 mm wall thickness, stainless steel up to 2 mm wall thickness. Thanks to the high precision and the large processing capabilities, the machine is suitable for all windows and doors profiles, curtain wall profiles, unitized curtain wall profiles, automotive industry, aviation industry, bus industry and furniture industry. The 7.3 meter net machining length of the machine is divided into 2 working zones of 3.500 mm each and the machine functions in 2 stations that can be independently programmed. The drilling operations and the milling operations are drawn thanks to 3D CAD-CAM Profile Machining software and the G codes are carried through a CNC Controller to the machine milling spindle. The profiles are connected on pneumatic clamping units that can take profiles up to 400 X 300 mm of size and 7.300 mm of length. The pneumatic clamping units can be positioned automatically by the machining bridge. In case the operations cause any collusion of the spindle on the clamps, the machine moves the clamps away from the crash automatically. The first spindle is working from the top and the second spindle is an angular spindle that is working from the sides of the profile The top spindle has 7.5 kW with 24.000 rpm driven through an inverter of 10 kW for adjusting the speed from 1 to 24.000 rpm. The machine is designed with a stationary automatic tool changer magazine placed in the middle of the machine with 8 positions
