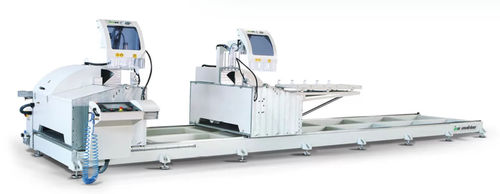

Miter sawing machine AS 534/65

for aluminumprofileCNC

Radial Double Mitre Saw with 600 mm sawblades that are moving in radial axis and has a huge cutting section. Net profile cutting length is 6,5 meter and the machine is customized for aluminium profiles. Second head moving on linear guides via rack&pinion and servo drives. Both heads tilting inside 45 and 90 degrees pneumatically. The ultimately rigid machine body maintains vibration free cuts despite the huge weight that is caused by the 650 mm stroke of the sawblades. There are 4 profile carriages manually operated between 2 heads to avoid the profiles from bending as the profiles that are cut in this machine are large and heavy. On this machine it is possible to cut very large Construction moulding profiles, automotive profiles, large sliding series and hebeschiebe systems. The machine is controlled via PLC and a touch panel of 10.2″. The cutting dimension and the cutting degrees are entered to the machine by using this controller interface that is available in 8 different languages. It is possible to enter a cutting-list to the machine manually or it is also pohttp://img.directindustry.com/images_di/2ai/save-En.gifssible to load cutting-lists via USB drive or LAN connection. In this way the machine can import any data from any window production software. Thanks to the INO’s dedicated software, the machine can read all kinds of .csv or .txt files and produce labels for each cut piece. Then those labels are read by the barcode reader of the CNC machining center and all the routing operations are identified without using any drawing software.
