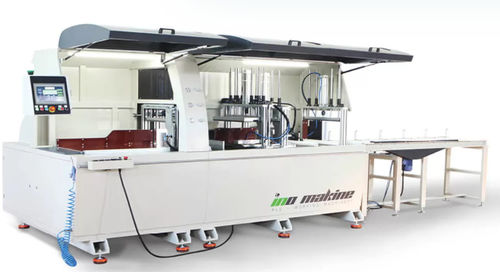

Cut-off sawing machine AS 499

horizontalverticalfor hard metal

“Customized machine for automatic cutting of industrial heavy profiles in 90 degrees between 1 mm – 1.250 mm in one stroke. The machine has a very rigid mechanical structure for feeding huge profiles and cutting them with great accuracy. The machine feeds the profile with brushless servo motor on screw mill system at the length that is adjusted by the operator from the cnc controller. The sawblade moves radially on the screw mill and brushless servo motors. For each cut piece it is possible to adjust the sawblade coming out distance. For each different size of sawblade it is possible to adjust the park place of the sawblade. Ultimate ridig steel contruction of 3 tons. 0,05 mm / m. Accuracy Sawblade power: 11 kW on belt driven reducer and the rpm can be adjusted via servo inverter between 0 – 4.000 rpm It is possible to connect different sizes of sawblades both in diameter and thickness and run them with different rpm and different feedrate to get the best cut quality on the cut surface of the cut pieces. Thanks to the automatic table separation system, the cut piece is separated after the cutting finishes before the sablade goes back. A superior cut piece surface is maintained. Cutting list read up to 99999 profiles. 8 pieces of horizontal and vertical clamping pistons for perfect grip of the profile. With the 3 meter roller conveyor it is possible to load profiles up to 6 meters on the machine. Profile Machining Software The machine is controlled via PLC and a touch panel of 10.2″. The cutting dimension and the number of pieces are entered to the machine by using this controller interface that is available in 8 different languages.
