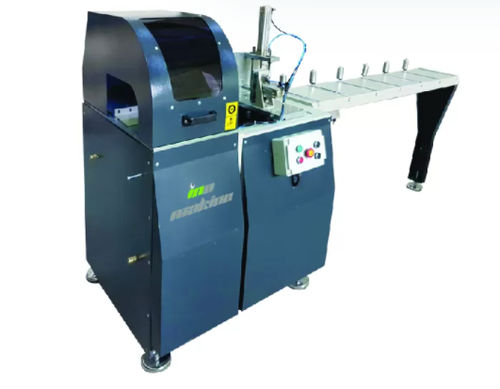

Cut-off sawing machine AS 489 S

for aluminumautomaticservo-driven

The machine is designed mostly for windows and doors companies. The sawblade is coming from down to up without any vibration thanks to the hydro-pneumatic piston. The 6 meter profiles bars are automatically-feeded inside the cutting section with a mechanism working on screw mill and servo motor. The machine’s cutting accuracy is 0.1 mm. There is a special clamping hood on the sawing section that clamps both the profile and the cut piece at the same time for perfect grip. This hood also helps the machine to extract the swarf coming out from the cut profile. Profile Machining Software The machine is controlled via PLC and a touch panel of 7″. The cutting dimension and the number of pieces are entered to the machine by using this controller interface that is available in 8 different languages. It is possible to enter a cutting-list to the machine with the number of cuts and with different dimensions. Main Body Electrowelded steel structure normalized with thermal treatment. The main body of the machine is processed in 5 Axis CNC Cteel Machining Center. All the body is painted with powder coating. Mostly all the mechanical pieces are die-casted and machined in our own cnc machining centers. During the design period our design team prioritize the operators’ ease of use and ergonomy of the machines in the first place. We don’t only use steel and aluminium in the mechanical structure; but we also use fiberglass casted pieces to decrease the weight of the machining bridge and give the machine a more esthetic look. The electrics box is welded at the back of the machine body. The controller terminal is also connected on the machine and it is movable according to the ease of use.
