Round tube connector BML
squarecast aluminumadjustable

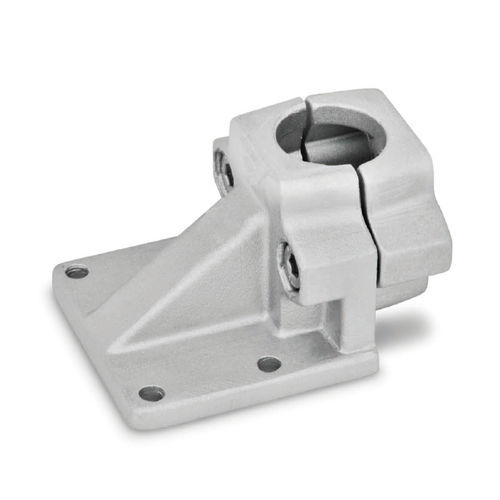

Round tube connector - BML - Inocon GmbH - square / cast aluminum / adjustable
Round tube connector - BML - Inocon GmbH - square / cast aluminum / adjustable
Round tube connector - BML - Inocon GmbH - square / cast aluminum / adjustable - image - 2
Round tube connector - BML - Inocon GmbH - square / cast aluminum / adjustable - image - 3
Add to favorites
Compare this product


Characteristics

Structure
round, square
Material
cast aluminum
Other characteristics
adjustable
Diameter

Min.: 20 mm
(0.787 in)

Max.: 50 mm
(1.969 in)

Description

Base clamps of die-cast aluminum have a split clamping point with round or square cross-section that has been partially machined by cutting methods. The bore at the clamping point is arranged perpendicular to the face of the flange. It receives typically available construction tubes via multiple ribs in the cross-section of the bore. At the screw points, hex socket cap screws or adjustable hand levers reduce the bore crosssection for clamping. Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tooloperated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length. RoHS-compliant product
