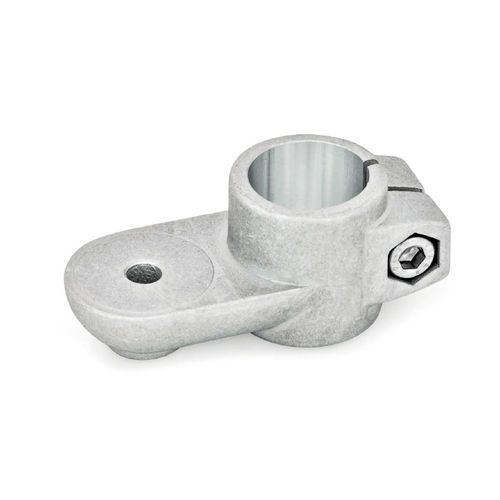

Swivel clamps of die-cast aluminum have a
slitted clamping point machined with cutting
methods. The fastening lug is smooth, has a
centering ring or has crown toothing that may be
countersunk or raised.
The fastening lug is centered and situated at an
angle of 90° to the clamping point bore, which
receives typically available construction tubes with
full contact over the entire cross-section.
The screw point of the fastening lug receives a hex
head or hex socket cap screw or a lock nut for
fastening any additional parts. At the clamping
point, a hex socket cap screw or an adjustable
hand lever reduces the bore cross-section for
clamping.
By combining swivel clamps that have identical
fastening lugs and corresponding centering ring
serration, it is possible to assemble any type of joint
clamp.
Adjustable hand levers are intended for repeated,
tool-free clamping. Under the designation HSK,
these are available separately for individual use and
in other designs. Compared with the tool-operated
hex socket cap screw, the clamping force
achievable with an adjustable hand lever is lower
due to the shorter lever length.
