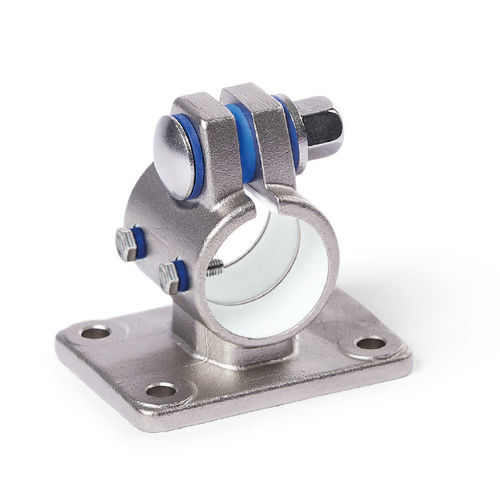

Round tube connector FE.E

stainless steelcastadjustable

Flanged linear unit connectors of precision- cast stainless steel have a slitted bore machined by cutting methods and are fitted with a sliding insert. This is arranged in the plane parallel to the face of the flange. Together with the guide tube of the linear unit, the guide element bore forms a solid linear round guide mechanism that can be adjusted and clamped for low play. Drive keys transmit the linear movement of the linear unit to the linear unit connector. Depending on the design, the part to be moved is fastened to the guide element or the guide element itself is installed at the place of use such that the entire linear unit moves together. At the screw point, a carriage bolt and a cap nut or an adjustable hand lever reduces the size of the guide element bore or clamping point. Type B is equipped with seals at the screw point. Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HEK, these are available separately for individual use and in other designs. Compared with the tooloperated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length. RoHS-compliant product
