Round tube connector TE.E

Tstainless steelcast

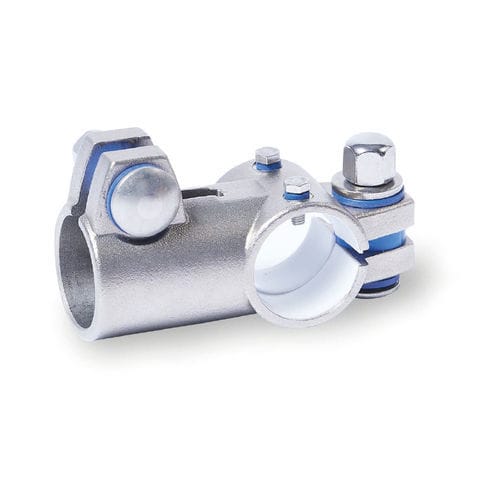

T-linear unit connectors of precision-cast stainless steel have a clamping point and a slitted bore machined by cutting methods and are fitted with a sliding insert. Both bores are situated in a plane and arranged in a T-shape. Together with the guide tube of the linear unit, the guide element bore forms a solid linear round guide mechanism that can be adjusted and clamped for low play. Drive keys transmit the linear movement of the linear unit to the guide element. Depending on the design, the part to be moved is fastened to the guide element or the guide element itself is installed at the place of use such that the entire linear unit moves together. At the screw points, carriage bolts together with cap nuts or adjustable hand levers reduce the guide element bore or clamping point size. Type B is equipped with seals at the screw points. Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HEK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length. RoHS-compliant product
