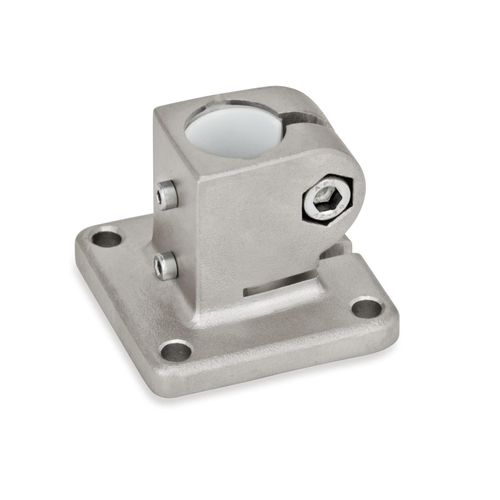

Round tube connector BK.E

stainless steelcastsliding

Base linear unit connectors BK.E of precision-cast stainless steel have a slitted bore machined by cutting methods, with or without a sliding insert. This is arranged perpendicular to the face of the flange. Together with the guide tube of the linear unit, the guide element bore forms a solid linear round guide mechanism that can be adjusted and clamped for low play. Drive keys transmit the linear movement of the linear unit to the linear unit connector. Depending on the design, the part to be moved is fastened to the guide element or the guide element itself is installed at the place of use such that the entire linear unit moves together. At the screw point, a hex socket cap screw reduces size of the guide element bore.
