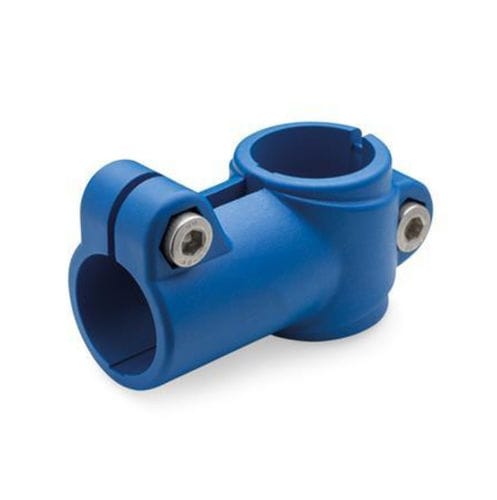

Round tube connector TS.P

glass-fiber reinforced polyamide

T-clamps TS.P of glass fiber reinforced polyamide have slitted clamping points. The bores at the clamping points are situated in a plane and arranged in a T-shape. They receive typically available construction tubes with full surface contact over the entire cross-section of the bore. Adapter bushings RBS.P can be used to reduce the bore cross-sections to a smaller diameter. At the screw points, hex socket cap screws or adjustable hand levers reduce the bore cross-section for clamping. Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK.P, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length. The plastic used in surface VB is made from blue, visually detectable and FDA-compliant plastic granulate as per FDA CFR.21 and EU 10/2011.
