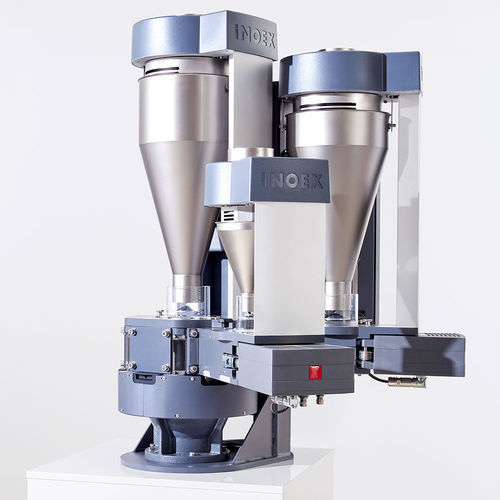

Gravimetric dosing unit SAVEMOAT DOS

powderfor plastic pelletsfor extrusion lines

The flexibly combinable dosing station allows the exact blending of up to seven material components. Two configuration levels are available the DOS 2 (one main and one side component) and the DOS 7 (one main and up to six side components). Dosing is carried out according to customer-specific requirements. The processing of granules and powder is also possible. The dosing station can be flexibly equipped with different funnel weighers and thus fulfills the most demanding processes of gravimetric weighing. Common applications include film extrusion or PVC pipe production with complex formulations. The control system regulates the corresponding product parameters on the basis of the measured data acquired, so that an exact mass throughput is achieved with minimum raw material consumption. Other advantages/features: Suitable for complex recipes and special applications Individually and flexibly configurable (DOS 7 also as 6-component dosing without main component available) Hopper scale sizes of main and side components freely selectable Variants for granules and powder Easy accessibility and cleaning of components
