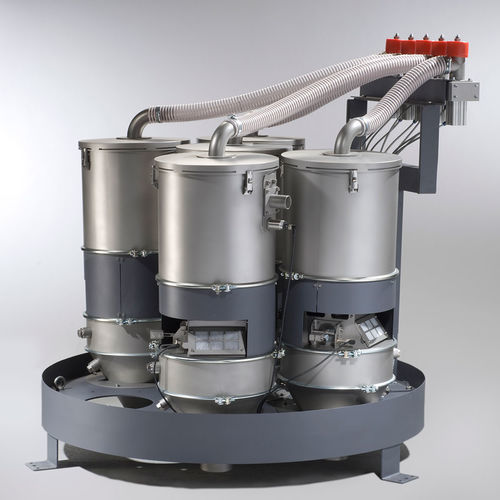

Continuous pneumatic conveying system SAVEOMAT

for plasticsfor pellets

SAVEOMAT Satellite is the innovative vacuum conveying system in which the suction capacity can be split as required. The valve technology on the vacuum manifold allows the power to be split between different material separators. A control of the applied vacuum ensures a constant vacuum during material conveying and guarantees a delay-free material supply. Complete extrusion lines or entire production halls can thus be supplied via a single or several vacuum generators connected in parallel. The suction power is applied as needed for each individual component, ensuring careful feeding, even of critical materials. The coarse filter of each material separator, which separates the suctioned material into granules and dust during conveying, is self-cleaning when the air is depressurized. Other advantages/features: Splitting of the suction power according to requirements Simultaneous conveying of several material separators Vacuum is available immediately Careful material conveying Material bottlenecks are prevented and blower running time is shortened Reduction of energy costs Suitable for PE, PP and PVC granules
