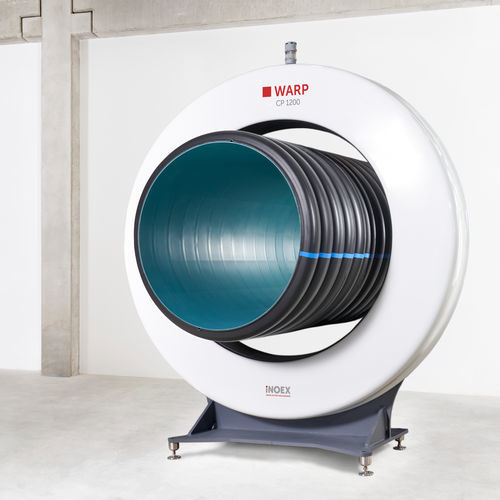

Thickness measuring system WARP CP

continuousfor plastic pipesfor extrusion lines

The WARP CP is an inline measuring system with radar-based wall thickness sensors for detecting the various structures of a corrugated pipe. Outer and inner diameters, as well as the wall thicknesses of the bell, crest, liner, and valley can be resolved. The system is available for large, corrugated pipes with diameters from 300 mm. The 8 sensors around the corrugated tube scan it continuously. Since the corrugated tube has different structures, it is therefore necessary to assign the measurement data to the corresponding position on or in the tube. The WARP CP algorithms do this automatically and prepare the data for the user in such a way that he receives different graphics and corresponding measurement data for each structure. Further advantages/features: Non-destructive, contactless, and automated inline measurement of all relevant structures of the corrugated tube No waste due to destructive measurement Repair of critical thick and thin spots Saving of material overweight in the end product Continuous process monitoring and complete production documentation
