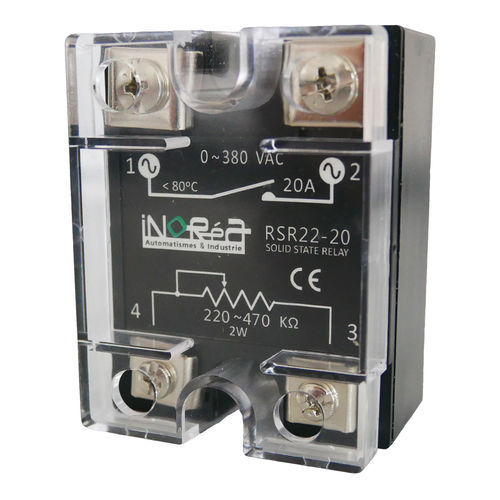

AC solid state relay RSR22 series
power

AC solid state relay - RSR22 series - iNOReA - power
AC solid state relay - RSR22 series - iNOReA - power
AC solid state relay - RSR22 series - iNOReA - power - image - 2
AC solid state relay - RSR22 series - iNOReA - power - image - 3
AC solid state relay - RSR22 series - iNOReA - power - image - 4
Add to favorites
Compare this product


Characteristics

Control voltage
AC
Function
power
Switching current

10 A, 20 A, 25 A, 40 A

Output voltage

Max.: 230 V

Min.: 0 V

Description

The single phase dimmer performs as a contactor: a voltage application on the potentiometer control drives the transistor with a variable voltage between 0 and 230V. Technical features CMOS technology Top protection in plastic Isolation voltage: 1000 MΩ / min (500V) Dielectric rigidity 2500VAC / 1 min Leakage current <2mA Switching time <10ms Operating temperature: -5°С to + 65°С, relative humidity: 35 - 85% RH Radiator sizing is critical for the lifespan of the component. The power dissipation can be calculated from the following formula:
