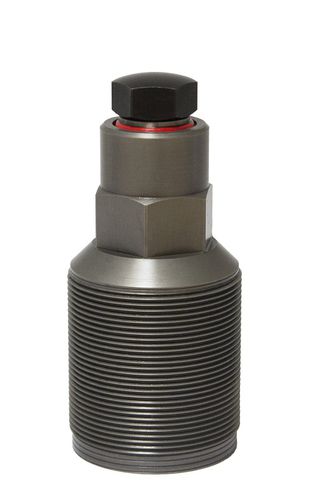

Hydraulic cylinder IWS series

clamping

Work support hydraulic, 250 bar, single acting - High support forces - Operating pressure from 35 bar on - Lock against rotation included - Low settlement - Non-sensitive for lateral forces - No ventilation for housing required These elements don‘t work with conventional generated supporting force by a clamping bush. Recommendations for use: Work support elements are used as variable support points to prevent the vibration and deflection during the machining of workpieces. The threaded-body design allows space saving and direct installation into the fixture body. Oil supply is made through drilled channels. The support elements must always be selected so that occurring load and clamping forces are recorded with sufficient reserve. The support elements are protected against the ingress of fluids and moisture. An additional ventilation or air purge connection is not necessary. By observing the indicated contact spring-force, own thrust bolts can be used. We recommend as a medium hydraulic oils acc. to DIN 51524 (HL, HLP).
