Double-acting hydraulic hinge clamp IELC series

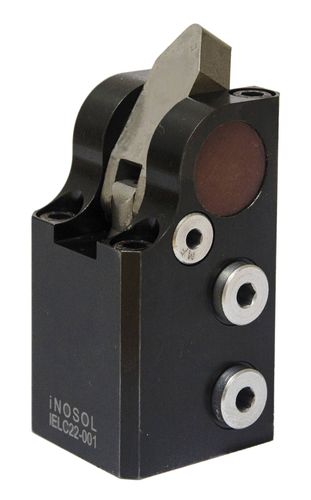

Eccentric Lever Clamp hydraulic, 250 bar, double acting - Incl. pneumatic detection - Lever must not be hardened - Top-Flange and Bottom-Flange - Thread and O-Ring connection - Low interference contour - Compact design The eccentric lever clamp is a double-acting pressure cylinder, in which the clamping lever is moved over a eccentrically mounted rotary point for clamping the workpiece. Recommendations for use: The eccentric lever clamp has a relatively high clamping force with a small base area. For this reason, this solution is suitable for machines with high power and challenging spaces. Oil supply through drilled channels or via the unitary thread M10x1. For the installation of the clamping cylinder, the flange surfaces should be adapted to the height of the workpiece. These clamps are particularly suitable when no lateral swiveling of the clamping lever is possible. The flow rate of about 1.8 l / min should not be exceeded. When customer's tension levers are used, they should be equipped with a thrust bolt or hardened on the clamping / support surface. The use side goose-necked clamping levers is not recommended
