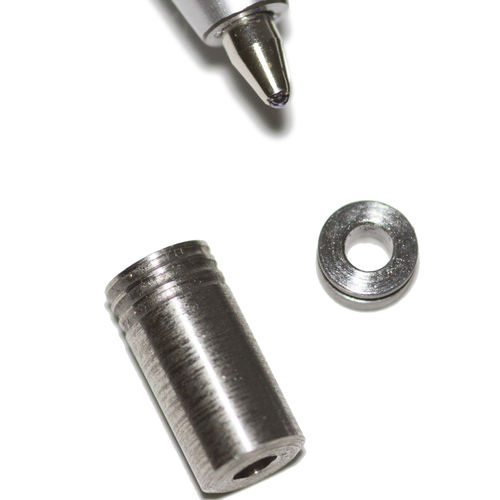

Ball check valve ICV02 series

miniaturehydraulicpneumatic

Miniature Check Valve - Individual positioning - Simple mounting hole - Valve combinations possible - For hydraulic and pneumatic applications - Working pressure up to 300 bar - Space saving mounting - Usable for different media As insert valve for Bore diameter 5 While pressure application at port "A" the cylinder moves out. The displaced volume will be supplied through the throttle screw by passing the non-return valve through the bore of channel "B". For the retraction of the cylinder, now the port "B" is setted with pressure. The piston drives back with a higher speed. If this restriction is applied to several cylinders, you can sync them in their movement and throttle the tension in their extension speed
