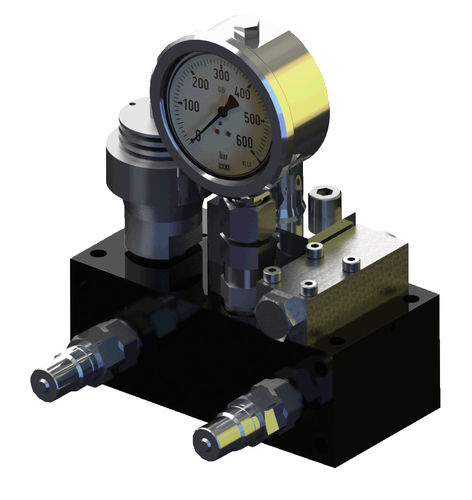

Manual hydraulic coupling unit IMCU-002

Manual Coupling Unit Double Acting, max. 400 bar - Integrated safety elements - Disconnection while keeping the system pressure - Manifold mounting - O-Ring and thread connection The coupling unit is used when the fixture is manually separated from the pressure generator. This unit has to be operated exclusively double-acting. Recommendations for use: The coupling unit is equipped with various connectivity options. It can be attached via O-ring connector on the bottom or at the back with G1 / 4 or O-ring. All sealing and closure elements are included. As pressure medium we recommend hydraulic oil acc. DIN 51524 (HL, HLP). Workflow for tensioning of a device: - Coupling-manually at port „A+B“ - Pressure generation at „A“ until all clamping elements are excited and the required system pressure is reached. - Stop pressurizing - Uncouple manually Unclamping - Coupling-manually at port „A+B“ - Pressure generation at „B“ until all clamping elements are retracted. With pressurizing at „B“ the double check valve is released and the reflow in „A“-port is effected. - Stop pressurizing.
