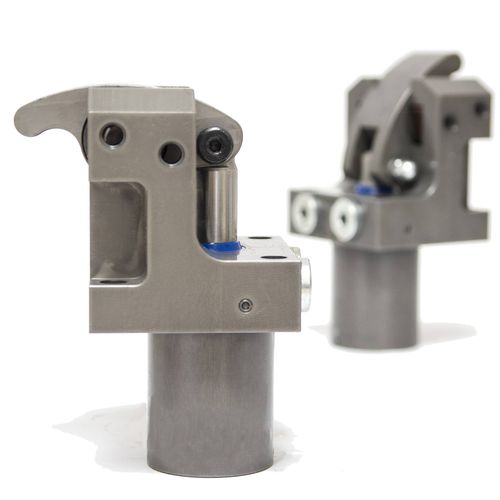

Double-acting hydraulic hinge clamp ISJC series

abrasion-resistantcorrosion-resistant

Sliding Joint Clamp, hydraulic, up to 400 bar, double acting In particular, the clamping cylinder can also be used in the field of mining- and casting operations. Because of the design of the guides, seals and wipers here is a significantly longer service life reachable, as with comparable other clamping solutions. – High clamping force – Solid Design – For high vibrations or lateral force absorption – No interference contour while loading the parts – Oil connection via thread- or manifold connection – Withstands large dirt Recommendations for use: These clamping elements are available in 2 - externally identical versions. For the type , lever and housing are almost free ISJC-002 of play in the axial direction of the lever pivot point. This allows the elements to . absorb high lateral forces In type , the lever and housing are completely ISJC-004 decoupled from each other. Here, the lever is held in its middle position by the integrated disc springs. This version is suitable . for high vibrations The Sliding Joint Clamping cylinder has a high clamping force with a relatively small footprint. For this reason, this solution is suitable for machines with high performance and difficult space conditions. Above all, the clamping cylinder can also be used in the mining and foundry industry. Due to the design of the guides, seals and scrapers, a significantly longer service life is to be achieved here than with comparable other clamping solutions. When installing the sliding joint clamping cylinder, the flange surface should be adjusted to the height of the workpiece. The cylinder is suitable for any mounting position.
