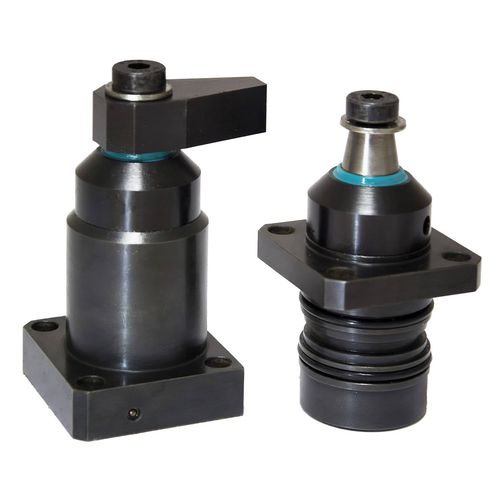

Swing clamp ISCC series

hydraulicworkpiecedouble-acting

Compact Swing Clamp Hydraulic, max. 230 bar, double acting This swing clamp is interchangeable to competitive link clamps. Available as plug-in and manifold mounting type. - Mechanically insensitive - Low required space - Simple Clamping Arm - Manifold- and cartridge types - Wobble-free and precise guidance - With tapered sleeve as option Description: These swing clamps are pull cylinders in which by pressurization on the piston rod side, the rotational movement of the piston is generated (swing stroke). After the pivoting movement is completed, the actual clamping stroke is initiated. Pivoting- and clamping stroke result in the total stroke. For easier production of own clamping arms, tapered sleeves are offered. The designs are also named as upper assembly- and cartridge versions.
