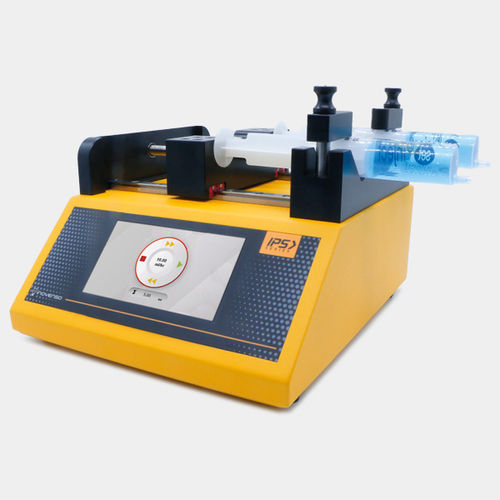

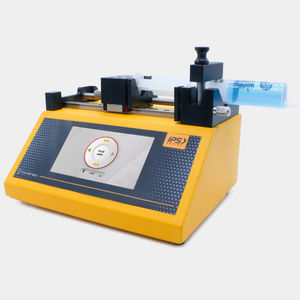

Syringe pump IPS-13

stationaryindustrialadjustable

IPS 13 is a programmable double-channel pump that provides a wide flow rate range (1,17 pl/min – 75,945 ml/min), the lowest flow rate can be reached using a Hamilton 0,5 µl, the maximum can be reached using a 140 ml Monoject Syringe. It can hold two syringes of different sizes; each syringe is held by its own clamp. • Double Channel • 4,3” Resistive Touch TFT LCD screen • Microcontroller software • User-friendly interface • High precise pumping • Adjustable flow rate even during the process IPS-13 Syringe Pump | Infuse Mode Design Details IPS-series syringe pumps provide accurate and precise delivery of the desired amount of fluids, can be used in the types of applications that require smooth, non-pulsatile flow that is extremely accurate. The flow rate can be adjusted from the easy-to-use touch screen panel even during the process. Technical Specs MODEL - IPS13 MODE - Infuse only SYRINGES - Capacity - 2 Interdependent Type - Glass, plastic, steel Min Size - Hamilton 0,5 µl (ID:0,103mm) Max Size - Monoject 140 ml (ID:38mm) FLOW RATE - Min - 1,17 pl/min (Hamilton 0,5 µl) Max - 75,945 ml/min (140 ml Monoject Syringe) MOTOR TYPE - Stepper Motor MOTOR DRIVE CONTROLLER - Microcontroller with Microstep Drive STEP RESOLUTION (Travel/Microstep) - 223,2 nm/µstep STEP RATE - Min - 10 sec/µstep Max - 200 µsec/µstep LINEAR SPEED RATE (PUSHER TRAVEL RATE) - Min - 1,34 µm/min Max - 66,96 mm/min LINEAR FORCE - 30 kg for each syringe CONNECTORS - Wi-fi (optional) RECIPE SAVE-RECALL - No POWER SUPPLY - 12 VDC 1A (110-240 VAC adaptor included) DIMENSIONS - W:200 L:250 H:143 mm WEIGHT - 2.9 kg
