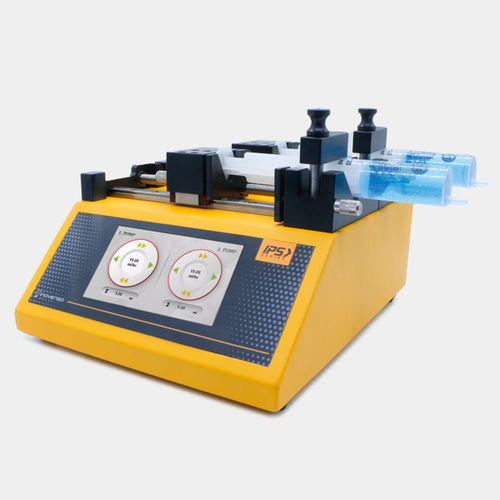

Infusion pump IPS-14R

stationaryindustriallaboratory

IPS 14-R is a programmable double-channel pump that provides a wide flow rate range (1,17 pl/min – 75,945 ml/min), the lowest flow rate can be reached using a Hamilton 0,5 µl, the maximum can be reached using 140 ml Monoject Syringe. It can hold two syringes of different sizes, each syringe is held by its own clamp and can be independently adjusted (possibility to use different flow rate for each syringe). This model enables purging backward and forward (infusion and withdrawal). INFUSION/WITHDRAWAL (FORWARD AND BACKWARD) • 2 Independent channels • 4,3” Resistive Touch TFT LCD screen • Microcontroller software • User-friendly interface • High precise pumping • Adjustable flow rate even during the process IPS-14R Syringe Pump | Infuse/withdraw 1 Design Details IPS-series syringe pumps provide accurate and precise delivery of the desired amount of fluids, can be used in the types of applications that require smooth, a non-pulsatile flow that is extremely accurate such as Electrospinning, Electrospraying, Dispensing, organ/tissue perfusion, Microfluidic applications… The flow rate can be adjusted from the easy-to-use touch screen panel even during the process. 02 Technical Specs MODEL - IPS14R MODE - Infuse/withdraw SYRINGES - Capacity - 2 Independent Type - Glass, plastic, steel Min Size - Hamilton 0,5 µl (ID:0,103mm) Max Size - Monoject 140 ml (ID:38mm) FLOW RATE - Min - 1,17 pl/min (Hamilton 0,5 µl) Max - 75,945 ml/min (140 ml Monoject Syringe) MOTOR TYPE - Stepper Motor MOTOR DRIVE CONTROLLER - Microcontroller with Microstep Drive STEP RESOLUTION (Travel/Microstep) - 223,2 nm/µstep STEP RATE - Min - 10 sec/µstep Max - 200 µsec/µstep
