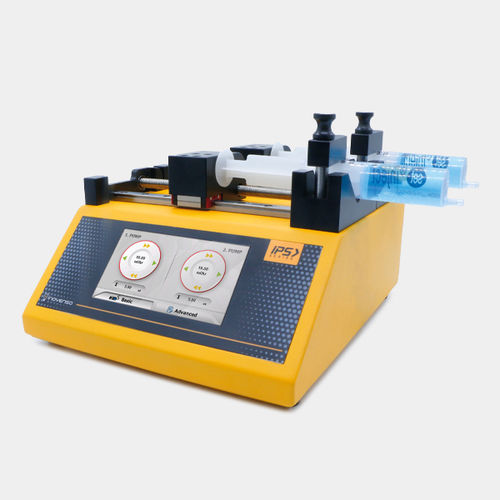

Syringe pump IPS-14S

stationaryindustrialadjustable

IPS 14-S is a programmable double-channel pump that provides a wide flow rate range (1,17 pl/min – 75,945 ml/min), the lowest flow rate can be reached using a Hamilton 0,5 µl, the maximum can be reached using a 140 ml Monoject Syringe. It can hold two syringes of different sizes, each syringe is held by its own clamp and can be independently adjusted (possibility to use different flow rate for each syringe). This model enables saving the previous parameters and easily recall them for further operations. 5 STEPS OPERATION MODE SAVING AND RECALLING SUBSEQUENTLY UP TO 5 RECIPES • 2 Independent channels • 4,3” Resistive Touch TFT LCD screen • Microcontroller software • User-friendly interface • High precise pumping • Adjustable flow rate even during the process IPS-14S Syringe Pump | Infuse Mode 01 Design Details IPS-series syringe pumps provide accurate and precise delivery of the desired amount of fluids, can be used in the types of applications that require smooth, non-pulsatile flow that is extremely accurate. The flow rate can be adjusted from the easy-to-use touch screen panel even during the process. 02 Technical Specs MODEL - IPS14S MODE - Infuse only SYRINGES - Capacity - 2 Independent Type - Glass, plastic, steel Min Size - Hamilton 0,5 µl (ID:0,103mm) Max Size - Monoject 140 ml (ID:38mm) FLOW RATE - Min - 1,17 pl/min (Hamilton 0,5 µl) Max - 75,945 ml/min (140 ml Monoject Syringe) MOTOR TYPE - Stepper Motor MOTOR DRIVE CONTROLLER - Microcontroller with Microstep Drive STEP RESOLUTION (Travel/Microstep) - 223,2 nm/µstep STEP RATE - Min - 10 sec/µstep Max - 200 µsec/µstep
