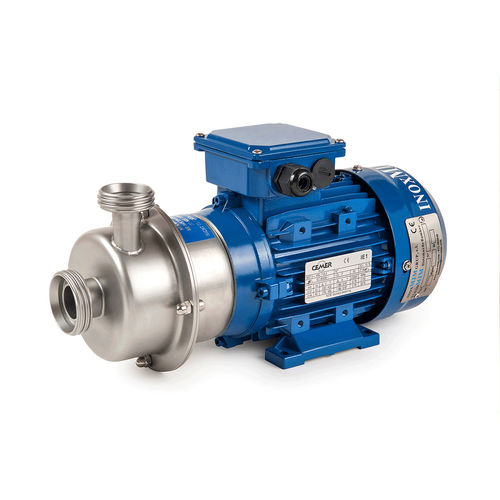

Centrifugal pump FL20Cfor winewateroil
Add to favorites
Compare this product
Characteristics
- Fluid
- water, for wine, oil
- Operation
- with electric motor
- Priming
- self-priming
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer, discharge, handling
- Material
- stainless steel
- Other characteristics
- compact, suction, small, open
- Flow
12 m³/h
(423.776 ft³/h)- Power
0.25 kW, 0.37 kW
(0.34 hp, 0.5 hp)- Weight
8 kg, 12 kg
(17.64 lb, 26.46 lb)
Description
The FL20C centrifugal pump is well known for its small size and high performance. Despite their small size, these pumps can provide flows up to 12 m3/h with good outcomes. FL20C pumps can be used in transferring and handling applications of low viscosity products such as water, oils, glycols and wines.
CHARACTERISTICS
Level of finish: Industrial
Material: SS AISI 316
0.37kW motor at 3000 turnovers per minute
0.25kW motor at 1500 turnovers per minute
Impeller: ø90 Half-open impeller
Suction / Discharge: 1" / BSP
OPTIONS
Motor covering
Other connections: DIN 11851,
CLAMP, SMS, etc.
Platform, trolley
