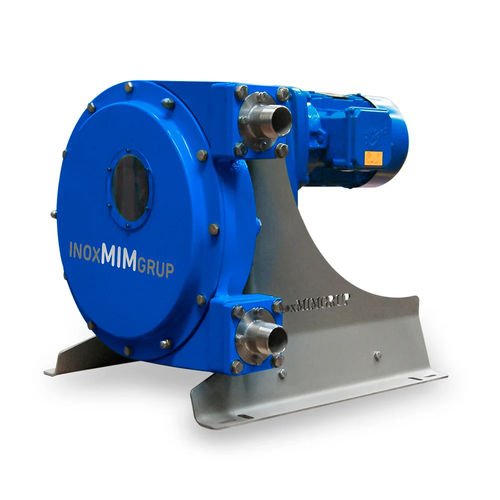

Peristaltic pump FL – PH
for adhesivesfor resinfor ink

Peristaltic pump - FL – PH - InoxMIMGrup S.L. - for adhesives / for resin / for ink
Peristaltic pump - FL – PH - InoxMIMGrup S.L. - for adhesives / for resin / for ink
Peristaltic pump - FL – PH - InoxMIMGrup S.L. - for adhesives / for resin / for ink - image - 2
Peristaltic pump - FL – PH - InoxMIMGrup S.L. - for adhesives / for resin / for ink - image - 3
Add to favorites
Compare this product


Characteristics

Technology
peristaltic
Fluid
for adhesives, for resin, for ink, for hydrocarbons, for cream, for juice, for cement
Operation
electric
Priming
self-priming
Mobility
stationary
Domain
industrial, chemical, for water treatment
Material
stainless steel, cast iron
Fluid specification
dye
Other characteristics
mechanical, for fluids, custom
Flow

Min.: 7,000 l/h
(1,849.20437 us gal/h)

Max.: 52,000 l/h
(13,736.94672 us gal/h)

Pressure

3 bar
(43.511 psi)

Power

1.5 kW, 3 kW, 5.5 kW, 7.5 kW
(2.04 hp, 4.08 hp, 7.48 hp, 10.2 hp)

Weight

140 kg, 215 kg, 400 kg, 425 kg
(308.65 lb, 473.99 lb, 881.85 lb, 936.96 lb)

Description

Peristaltic Foundry Pump FL – PH INOXMIM has designed the Peristaltic Foundry Pump FL – PH with the goal of extending the range of application for these pumping systems. With its cast iron or stainless steel range, the FL-PH is capable of meeting the requirements of sectors such as water treatment, chemical and paper manufacturing, mining, food processing, pharmaceuticals and cosmetics. It can handle products including sludge, cellulose pulp, slurries, sediments, carbonates, coarse coal refuse, mortar, concrete, fibre cement, dyes, colorants, glue, resins, detergents, fertilizers, hydrocarbons, paint, ink, enamel, pigment, fat, waste oil, milk, yogurt, juice, fruit pulp, jam, wine, mayonnaise, cream, gel, concentrates, latex, mercury, etc… This pump can work with such a wide variety of products, regardless of whether they are low, medium or high viscosity, because the only contact between the product and the pump is through the tubing, avoiding contact between mechanical parts and the fluid. These pumping systems have been specifically designed to increase pumping capacity (flow and pressure), in addition to extending the life of the tubing material. This allows the FL-PH to offer high performance combined with great durability.
