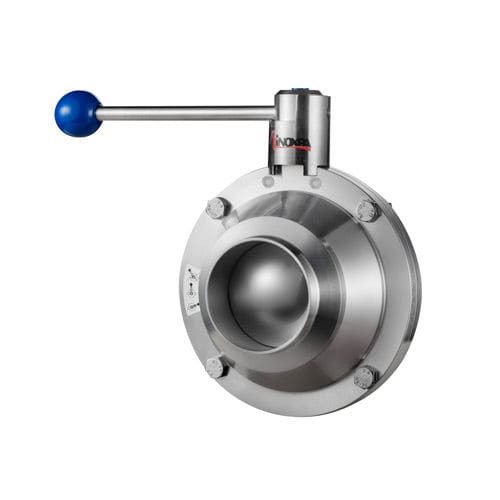

Ball valve A640

manualpneumaticelectropneumatic

Sanitary ball valves A640, whether manually or automatically operated, are used mainly with viscous fluids containing solid particles, and, generally, in applications requiring an unobstructed flow. Food grade ball valves are suitable for the food-processing, beverage, wine-making, oil-making, cosmetic and chemical industries. The ball valve can be operated automatically with an actuator or manually with a handle. The handle blocks the valve in the "open" or "closed" position. The actuator transforms the axial movement of the piston into a 90º rotary movement which it transmits to the ball. Compact and robust design. Easily interchangeable manual handles and pneumatic or electrical actuators. Low pressure losses. Body halves interchangeable with any connection type. Ball 1.4404 (AISI 316L) Body halves 1.4404 (AISI 316L) Other St.St. parts 1.4301 (AISI 304) Ball guide PTFE Gasket EPDM, NBR or FPM Internal Ra ≤ 0,8 µm External Machined Valve in AISI 304. Different handle types. Single- or double-acting pneumatic actuator or electrical actuator. Electropneumatic positioner. Inductive position sensors C-TOP S control head. Cleaning and drainage ports. Third hole. ATEX version available.
