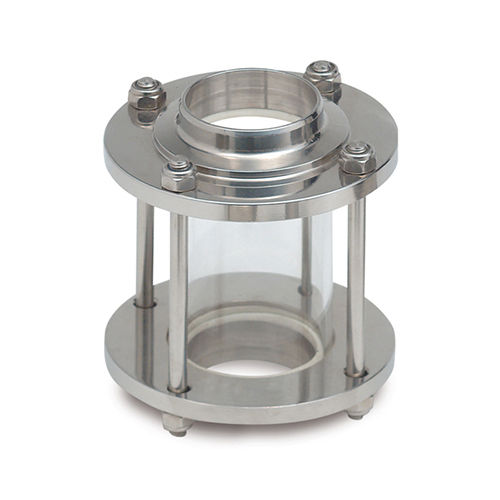

Sanitary sight glass 8000 stainless steel
Add to favorites
Compare this product
Characteristics
- Specifications
- sanitary, stainless steel
- DN
Max.: 150 mm
(5.9 in)Min.: 25 mm
(1 in)- Operating temperature
Max.: 140 °C
(284 °F)Min.: -10 °C
(14 °F)
Description
A tubular sight-glass is made of a stainless steel frame and a glass of the same section as the pipe.
Operating principle
It allows an easy inspection of the product flow in the food-processing, cosmetics, pharmaceutical and fine chemicals industries.
Attachment by self-locking nuts.
Full bore design.
360º viewing angle.
Vertical or horizontal assembly.
Interchangeable side parts.
Connections: Weld DIN 11850
Weld OD ASME BPE
Clamp DIN 32676
Clamp OD ASME BPE
Male DIN 11851
Side AISI 316L (1.4404)
Stud AISI 304L (1.4301)
Glass Borosilicate according to ISO 3585 and ASTM E438 Type I, Class A
Gaskets EPDM in compliance with FDA 21CRF 177.2600 and Regulation (EC) No 1935/2004
Surface finish Sanitary polish, Ra ≤ 0,8 μm
